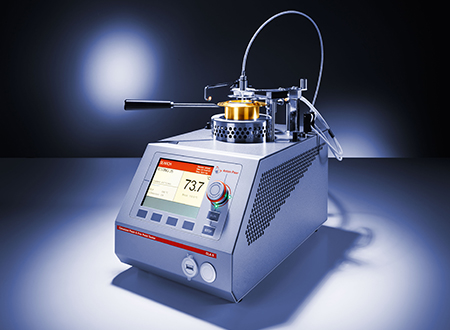

Cleveland Flash & Fire Point Tester: CLA 5

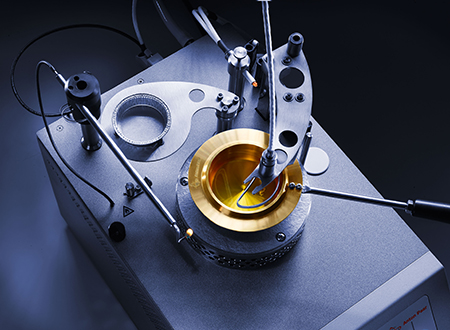

The automatic Cleveland Open Cup (COC) measures and describes the properties of a sample in response to heat and a test flame under controlled conditions. The flash point measures the tendency to form a flammable mixture with air while the fire pointindicates the tendency of sustained burning.

CLA 5 is suitable for the application range of volatility, lubricants, residual fuels or bituminous material.

FEATURES

Benefits at a Glance

• Memory for 1000 tests, 20 operators, 100 sample names, 21 test methods
• Statistical analysis (Min, Max, Mean, Repeatability)
• Measures silicone-containing samples without any problems
• Automatically lights up the test flame, relights it by an electric igniter and suppresses the gas source at the end of the test

Convenient Operation

• Test initiation by pre-installed standard test methods and ability to customize methods by 10 user-defined programs.
• Alert messages for out-of-spec-results
• Pt100 sample temperature probe calibration either by dynamic calibration against customer-certified ASTM thermometer and/or by correction table with 21 calibration points.
• Calibration protocol printout
• Real-time measurement indication on a 5.7” color graphic display
• Menu navigation by jog-shuttle system with easy turn-and-push operation and color-coded LED indication for each operation mode
• Data handling via USB stick for import into MS Excel®

Customized User Flexibility

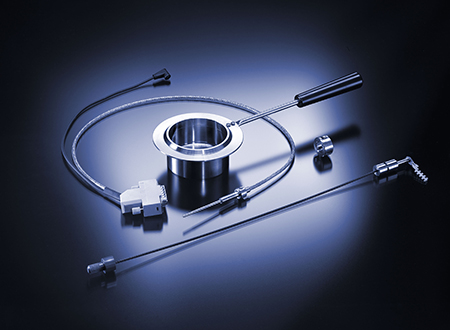

• Automatic skin removal kit (optional)
• Draft deflector (optional)
• Stainless steel sample temperature probe Pt100 (optional)
