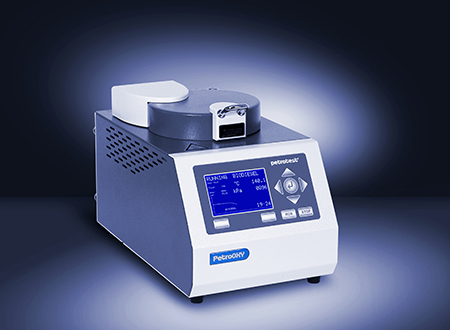

Rapid Small Scale Oxidation Stability Tester: PetroOxy

The patented Rapid Small Scale Oxidation Test (RSSOT) provides a complete oxidation stability analysis of petroleum products automatically in a very short test time.
PetroOxy is suitable for the stability determination of liquid fuels (gasoline, diesel, biodiesel, FAME and blends).

FEATURES

Benefits at a Glance

Precision and high reproducibility
Short test time
Maximized user safety
No sample preparation necessary

Convenient Operation

Safety approved by the German Federal Institute for Materials Research and Testing
Storage of 20 test results and up to 16,000 data sets
Automated pressure detection, oxygen charging and relief
Data transfer to your PC
Small sample volume
Fast and easy cleaning

Customized User Flexibility

Automatic re-cooling by Peltier elements with the active re-cooling device
Manual re-cooling by metal re-cooling block
Temperature calibration set (optional)
Pressure-calibration manometer (optional)
Dish for non-fluid samples (optional)
Reference fluid set (optional)
Bluetooth set (optional) for wireless connection to a PC

Specifications

Application range	Up to +200 °C
Re-cooling	Fan and active Peltier, automatic (active cool) Fan and metal block, manual (block cooling)
Sample volume	Typically 5 ml

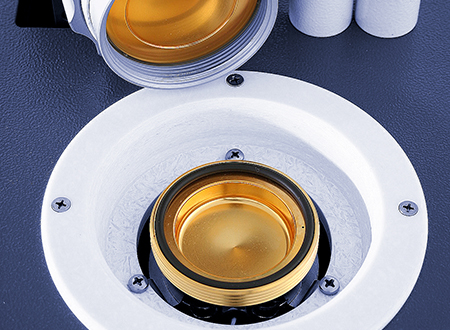

Test cell	Galvanic gold coating
Pressure range	Up to 2000 kPa (typically 700 kPa)
Detection	Pt100 temperature sensor
Internal memory	20 test results, 16,000 data sets
Safety	Screw cap cover, safety and isolation hood, over-temperature shut-off
Display	Pressure, temperature, pressure curve
Interface	RS232
Oxygen supply	8 bar maximum
Power supply	115/230 V, 50/60 Hz, 500 W
Dimensions	240 mm x 400 mm x 260 mm (W x D x H)
Weight	11 kg
